Soul high chair
Ergonomic office chair high seating
Soul meet is a tall office chair with castors and foot ring. The back can be fully upholstered or with mesh in back height 50. The chair's design follows the body's movements and the few settings are logically placed and easy to use. Savo Soul High is available in black and white with black, glossy or white foot cross and pillars.
Model
Savo Soul high chair
Construction
Upholstered back with frame made of recycled plastic and cold foam, covered with fabric. Seat frame made of plywood with cold foam padding. Mechanism in recycled aluminium. Height-adjustable steel pillar. 5-star swivel base made of cast recycled aluminum, or recycled plastic, with castors diameter 60 mm. Foot ring made of die-cast recycled aluminum and 16 mm steel tube. Armrests (optional) made of injection-molded recycled plastic and die-cast recycled aluminum.
Guarantee
10 years
Tested
EN1335- 1, -2:2018, EN1728

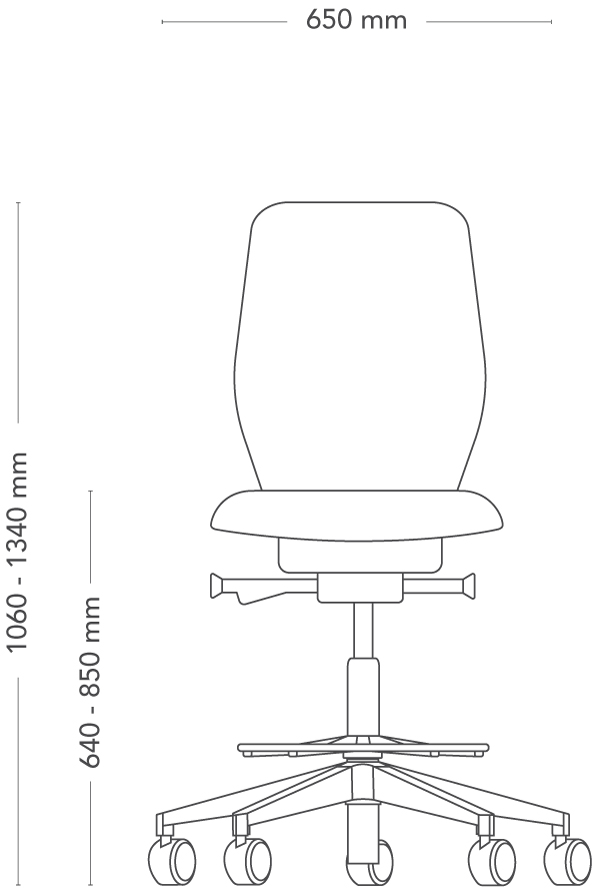

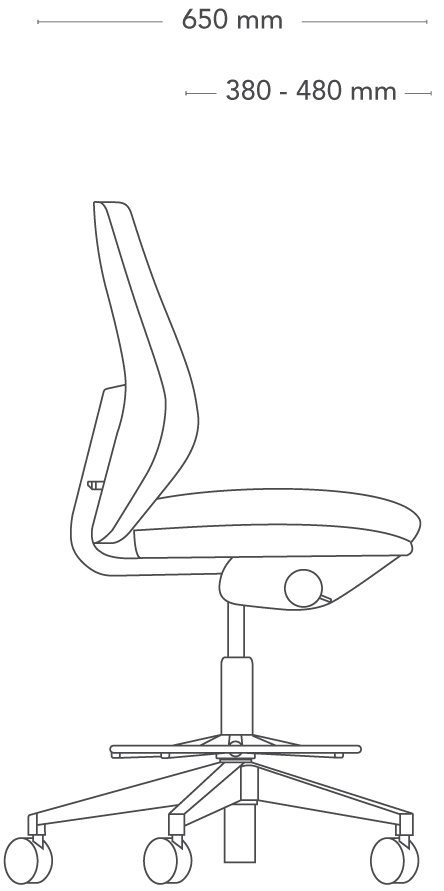

High chair, 40 back (small seat)
| Height | 1060-1340 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 640-850 mm |
| Backrest W | 400 mm |
| Backrest H | 480 mm |

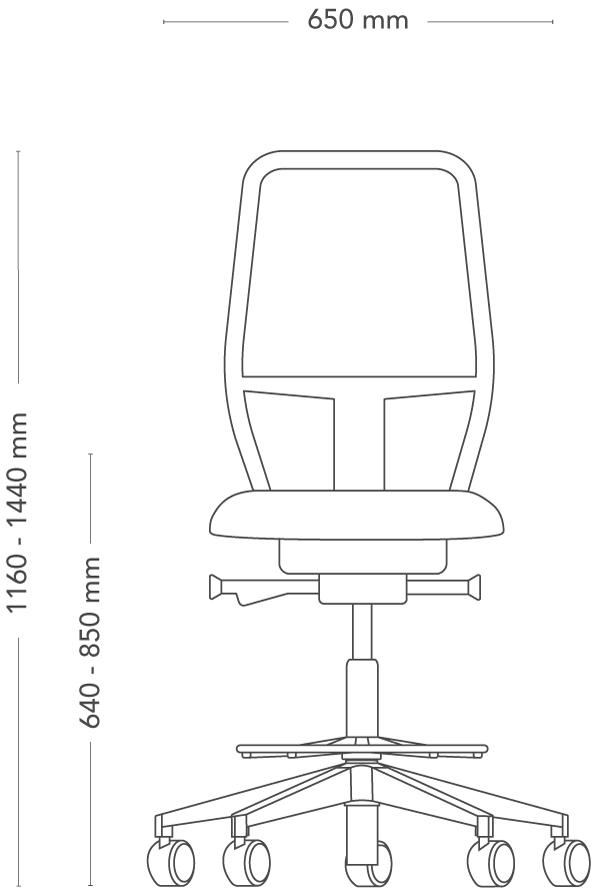

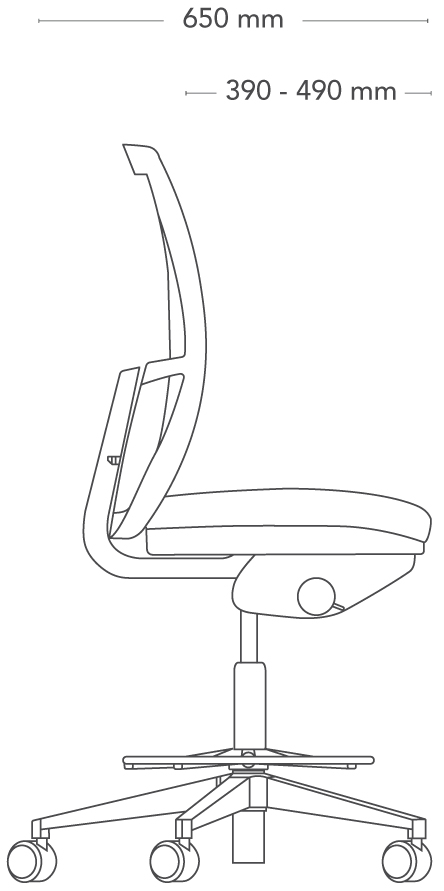

High chair, Mesh back 50 (small seat)
| Height | 1160-1440 mm |
| Width | 650 mm |
| Depth | 650 mm |
| Seat height (with load) | 640-850 mm |
| Backrest W | 420 mm |
| Backrest H | 590 mm |
| Base diameter | 710 mm |
| Weight | 13.3 kg |
Variant
Backrest
-
Back 40
Upholstered backrest, height 40 (not avaialable in white).
-
Mesh back
Mesh back.
Seat
-
Seat Small
Seat Small, 455x450 mm.
Materials
Seat
-
Fabric
-
Mesh back
-
Fabric
-
- Name:
- Code:
- Colour code:
- Price group:
- RAL-colour:
- NCS-colour:
- Supplier colour code:
- Composition:
Accessories
-
Footrest
Footrest as option (Ø 500 mm). Polished/black or polished/white.
-
Backrest
Upholstered backrest, height 40. Mesh backrest height 50.
-
Fotkryss
Black or polished aluminium swivel base as option. White swivel base for white version of the chair.
| Models | ||
|---|---|---|
| Savo-Soul High Chair | zip | Share file Download file |
| Assembly instructions | ||
|---|---|---|
| Soul assembly instruction neckrest (EN) | Share file Download file | |
| User manual | ||
|---|---|---|
| Use guide/guide to adjusting a Soul chair (EN) | Share file Download file | |
| Soul manual | Share file Download file | |
| Lumbar support, user manual | Share file Download file | |
| Certificates and licenses | ||
|---|---|---|
| Soul Environmental declaration (EN) | Share file Download file | |
| Brochures and Catalogues |
|---|
| Product sheet | ||
|---|---|---|
| Soul high prodsheet (EN) | Share file Download file | |
| Soul product sheet (EN) | Share file Download file | |
